Tracking Beacons

Emulating the trackBeacon call from v4 SDKs

The trackBeacon call is no longer available in the Experience Platform SDKs. If you would like to send beacon tracking data to your Analytics server and be able to create rules based off of a user's proximity to your beacons, you can do so manually. Note that this solution relies on the Profile extension for the purposes of generating beacon-related rules.

This page contains sample code to help you implement your own trackBeacon calls.

Tracking a beacon

When your user comes within range of a beacon, call this method to send beacon data to Analytics. This code also saves all beacon-related data in the client-side Profile for use with the Rules Engine.

Android
iOS

In this method, the proximity parameter is an int representing various distances:

  • 0 - Unknown

  • 1 - Immediate

  • 2 - Near

  • 3 - Far

static final String ACP_BEACON_MAJOR = "a.beacon.major";
static final String ACP_BEACON_MINOR = "a.beacon.minor";
static final String ACP_BEACON_UUID = "a.beacon.uuid";
static final String ACP_BEACON_PROXIMITY = "a.beacon.prox";
void trackBeacon(final String beaconUUID, final String major, final String minor, final int proximity, final Map<String, String> cdata) {
final HashMap<String, String> contextData = cdata == null ? new HashMap<String, String>() : new HashMap<String, String>(cdata);
if (major != null && !major.isEmpty()) {
contextData.put(ACP_BEACON_MAJOR, major);
UserProfile.updateUserAttribute(ACP_BEACON_MAJOR, major);
} else {
UserProfile.removeUserAttribute(ACP_BEACON_MAJOR);
}
if (minor != null && !minor.isEmpty()) {
contextData.put(ACP_BEACON_MINOR, minor);
UserProfile.updateUserAttribute(ACP_BEACON_MINOR, minor);
} else {
UserProfile.removeUserAttribute(ACP_BEACON_MINOR);
}
if (beaconUUID != null && !beaconUUID.isEmpty()) {
contextData.put(ACP_BEACON_UUID, beaconUUID);
UserProfile.updateUserAttribute(ACP_BEACON_UUID, beaconUUID);
} else {
UserProfile.removeUserAttribute(ACP_BEACON_UUID);
}
contextData.put(ACP_BEACON_PROXIMITY, String.valueOf(proximity));
UserProfile.updateUserAttribute(ACP_BEACON_PROXIMITY, String.valueOf(proximity));
final HashMap<String, Object> eventData = new HashMap<>();
eventData.put("trackinternal", true);
eventData.put("action", "Beacon");
eventData.put("contextdata", contextData);
final Event event = new Event.Builder("TrackBeacon", "com.adobe.eventType.generic.track", "com.adobe.eventSource.requestContent")
.setEventData(eventData)
.build();
MobileCore.dispatchEvent(event, null);
}

CLBeacon is only currently available in iOS. The sample code contains the necessary checks to ensure OS compatibility.

Objective-C

#if TARGET_OS_IOS
static NSString* const ACP_BEACON_MAJOR = @"a.beacon.major";
static NSString* const ACP_BEACON_MINOR = @"a.beacon.minor";
static NSString* const ACP_BEACON_UUID = @"a.beacon.uuid";
static NSString* const ACP_BEACON_PROXIMITY = @"a.beacon.prox";
+ (void) trackBeacon:(CLBeacon *)beacon data:(NSDictionary*)data {
NSMutableDictionary *contextData = data ? [data mutableCopy] : [@{} mutableCopy];
if (beacon.major) {
contextData[ACP_BEACON_MAJOR] = [beacon.major stringValue];
[ACPUserProfile updateUserAttribute:ACP_BEACON_MAJOR withValue:[beacon.major stringValue]];
} else {
[ACPUserProfile removeUserAttribute:ACP_BEACON_MAJOR];
}
if (beacon.minor) {
contextData[ACP_BEACON_MINOR] = [beacon.minor stringValue];
[ACPUserProfile updateUserAttribute:ACP_BEACON_MINOR withValue:[beacon.minor stringValue]];
} else {
[ACPUserProfile removeUserAttribute:ACP_BEACON_MINOR];
}
if (beacon.proximityUUID.UUIDString) {
contextData[ACP_BEACON_UUID] = beacon.proximityUUID.UUIDString;
[ACPUserProfile updateUserAttribute:ACP_BEACON_UUID withValue:beacon.proximityUUID.UUIDString];
} else {
[ACPUserProfile removeUserAttribute:ACP_BEACON_UUID];
}
switch (beacon.proximity) {
case CLProximityImmediate:
contextData[ACP_BEACON_PROXIMITY] = @"1";
break;
case CLProximityNear:
contextData[ACP_BEACON_PROXIMITY] = @"2";
break;
case CLProximityFar:
contextData[ACP_BEACON_PROXIMITY] = @"3";
break;
case CLProximityUnknown:
default:
contextData[ACP_BEACON_PROXIMITY] = @"0";
}
[ACPUserProfile updateUserAttribute:ACP_BEACON_PROXIMITY withValue:contextData[ACP_BEACON_PROXIMITY]];
NSDictionary *eventData = @{
@"trackinternal":@(YES),
@"action":@"Beacon",
@"contextdata":contextData
};
ACPExtensionEvent *event = [ACPExtensionEvent extensionEventWithName:@"TrackBeacon"
type:@"com.adobe.eventType.generic.track"
source:@"com.adobe.eventSource.requestContent"
data:eventData
error:nil];
[ACPCore dispatchEvent:event error:nil];
}
#endif

Swift

#if TARGET_OS_IOS
private let ACP_BEACON_MAJOR = "a.beacon.major"
private let ACP_BEACON_MINOR = "a.beacon.minor"
private let ACP_BEACON_UUID = "a.beacon.uuid"
private let ACP_BEACON_PROXIMITY = "a.beacon.prox"
class func trackBeacon(_ beacon: CLBeacon?, data: [AnyHashable : Any]?) {
var contextData = data != nil ? data : [:]
if beacon?.major != nil {
contextData?[ACP_BEACON_MAJOR] = beacon?.major.stringValue ?? ""
ACPUserProfile.updateUserAttribute(ACP_BEACON_MAJOR, withValue: beacon?.major.stringValue ?? "")
} else {
ACPUserProfile.removeUserAttribute(ACP_BEACON_MAJOR)
}
if beacon?.minor != nil {
contextData?[ACP_BEACON_MINOR] = beacon?.minor.stringValue ?? ""
ACPUserProfile.updateUserAttribute(ACP_BEACON_MINOR, withValue: beacon?.minor.stringValue ?? "")
} else {
ACPUserProfile.removeUserAttribute(ACP_BEACON_MINOR)
}
if beacon?.proximityUUID.uuidString != nil {
contextData?[ACP_BEACON_UUID] = beacon?.proximityUUID.uuidString ?? ""
ACPUserProfile.updateUserAttribute(ACP_BEACON_UUID, withValue: beacon?.proximityUUID.uuidString)
} else {
ACPUserProfile.removeUserAttribute(ACP_BEACON_UUID)
}
switch beacon?.proximity {
case .immediate?:
contextData?[ACP_BEACON_PROXIMITY] = "1"
case .near?:
contextData?[ACP_BEACON_PROXIMITY] = "2"
case .far?:
contextData?[ACP_BEACON_PROXIMITY] = "3"
case .unknown?:
fallthrough
default:
contextData?[ACP_BEACON_PROXIMITY] = "0"
}
ACPUserProfile.updateUserAttribute(ACP_BEACON_PROXIMITY, withValue: contextData?[ACP_BEACON_PROXIMITY])
let eventData = [
"trackinternal": NSNumber(value: true),
"action": "Beacon",
"contextdata": contextData
]
var event: ACPExtensionEvent? = nil
do {
event = try ACPExtensionEvent(name: "TrackBeacon", type: "com.adobe.eventType.generic.track", source: "com.adobe.eventSource.requestContent", data: eventData)
} catch {
}
do {
try ACPCore.dispatchEvent(event)
} catch {
}
#endif

Clearing the current beacon

The clearCurrentBeacon code will remove any previously set user attributes in the Profile extension. To keep Rules working as expected, this method should be called whenever the user is no longer within range of your beacon.

Android
iOS

This example is using static constant strings that were provided in the trackBeacon code sample above.

void clearCurrentBeacon() {
UserProfile.removeUserAttribute(ACP_BEACON_MAJOR);
UserProfile.removeUserAttribute(ACP_BEACON_MINOR);
UserProfile.removeUserAttribute(ACP_BEACON_UUID);
UserProfile.removeUserAttribute(ACP_BEACON_PROXIMITY);
}

CLBeacon is only currently available in iOS. The sample code contains the necessary checks to ensure OS compatibility.

This example is using static constant strings that were provided in the trackBeacon code sample above.

Objective-C

#if TARGET_OS_IOS
+ (void) clearCurrentBeacon {
[ACPUserProfile removeUserAttribute:ACP_BEACON_MAJOR];
[ACPUserProfile removeUserAttribute:ACP_BEACON_MINOR];
[ACPUserProfile removeUserAttribute:ACP_BEACON_UUID];
[ACPUserProfile removeUserAttribute:ACP_BEACON_PROXIMITY];
}
#endif

Swift

#if TARGET_OS_IOS
+clearCurrentBeacon
do {
ACPUserProfile.removeUserAttribute(ACP_BEACON_MAJOR)
ACPUserProfile.removeUserAttribute(ACP_BEACON_MINOR)
ACPUserProfile.removeUserAttribute(ACP_BEACON_UUID)
ACPUserProfile.removeUserAttribute(ACP_BEACON_PROXIMITY)
}
#endif

Using beacon values in Experience Platform Launch rules

In the above code samples, attributes are being set in the client-side user profile. We can use those attributes when creating a rule in Experience Platform Launch to give a custom experience or take a specific action when the user is near a beacon.

Beacon data in rule conditions

Mix-and-match beacon data in conditions to determine the specific audience for your action. You can use the following beacon-related variables:

  • UUID (a.beacon.uuid)

  • Major ID (a.beacon.major)

  • Minor ID (a.beacon.minor)

  • User Proximity (a.beacon.prox)

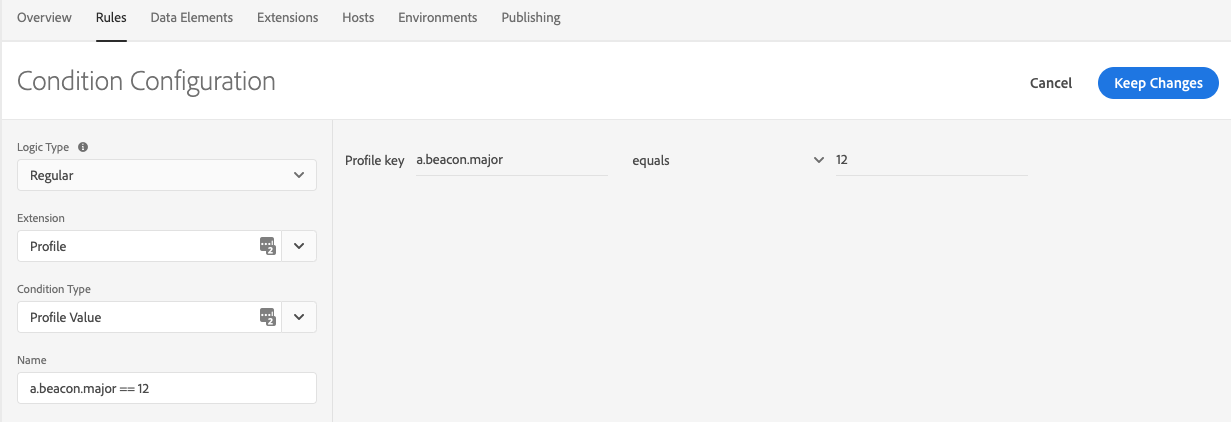

Configure your condition by selecting the Profile extension, choosing Profile Value as a condition type, and entering in the desired variable. The following image shows an example of a condition which will pass when the Major ID (a.beacon.major) of the beacon is equal to 12:

Beacon data in rule actions

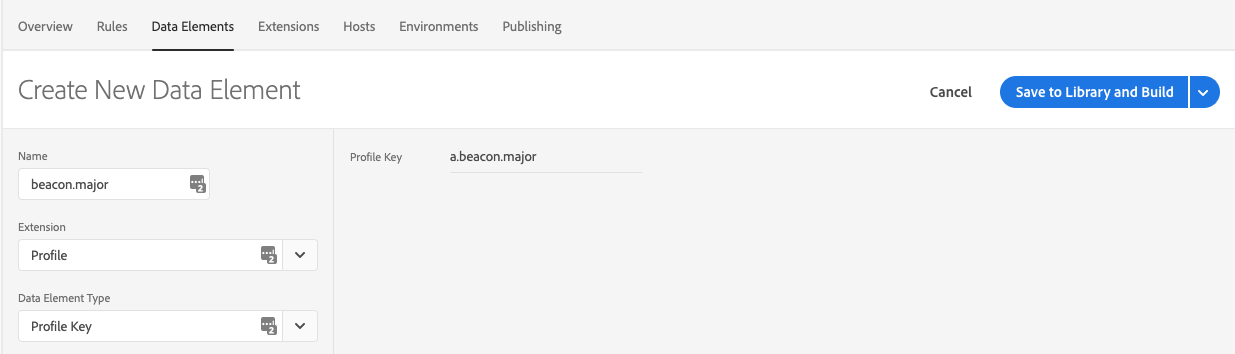

Before using beacon data in your actions, creating a data element is recommended. You will need to create a data element for each variable you want to use in your actions. The image below is an example of creating a data element named beacon.major for the a.beacon.major key in our profile:

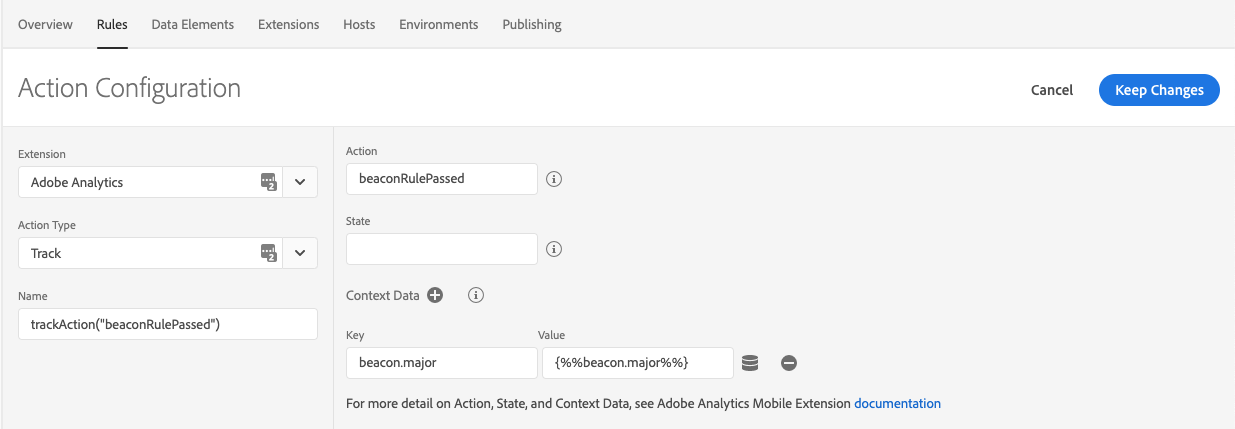

After creating a data element, we can use it as token replacement in our actions. The screenshot below shows an action sending data to Analytics, and attaching the beacon.major data element as additional context data:
