Attach data to SDK events

The attach data rule action is supported in Mobile Core starting version 2.1.8 (Launch), 2.3.5 (iOS), and 1.4.5 (Android). This action is powerful, complex, and enables advanced use cases.

To use this action, we need to provide context about how events flow in the Adobe Experience Platform Mobile SDK and how they interact with the SDK's rules engine. Next, you will learn how to use the action with relevant examples.

Context

What are SDK events?

In the Experience Platform Mobile SDK, events hold all the data that is required by other extensions to complete the necessary actions. Events have the following properties:

Property

Description

Type

Describes the event. Examples include Analytics, Target, Lifecycle, and so on.

Source

Indicates the cause of or directionality of the event. For example, a request or a response.

Event data

Additional data is required to define the event. For example, context data on an Analytics event.

Extensions that register with Mobile Core will also register event listeners. A listener is defined by an event type and source combination. When the SDK event hub processes an event, it notifies all listeners that match the provided combination.

How are events created in the SDK?

Events are created by an extension and are dispatched to the SDK Event Hub. Each published rule that is created in Adobe Experience Platform Launch is evaluated against the current event. Finally, the event is passed to each of the listeners for events with this type /source combination.

Events are created and dispatched when an SDK public API is invoked. Attach data action use cases are meant to act on these types of events.

What is the Rules Engine?

The Rules Engine lives in the SDK Event Hub. Before listeners are notified, the Rules Engine evaluates each Experience Platform Launch rule against the triggering event. A rule is defined by the following properties:

Property

Description

Event

Trigger for the rule.

Condition

Definition of the criteria to compare against the triggering event.

Action

The resulting action if the evaluation of the rule is positive.

A rule might be read out in the following way: If SDK Event occurs and Condition(s) are met, then perform the Action(s).

Using the attach data action

Attach Data is a type of Rule Action that allows you to add event data to an SDK event. The modification of data happens in the Rules Engine before event listeners are notified of the event.

Attach Data Rule Actions will only add data to the event, and the actions never modify or remove data.

If there is a conflict between the data that is defined in your Rule and the data in the Event, the data in the event always has preference.

Defining a payload for the attach data action

When defining a payload for the attach data action, the payload must match the format of the triggering event. For example, if you want to add context data to an Analytics event, you need to know where the context data is defined on that event and match the format in your rule. For this reason, we strongly recommended that you enable verbose logging in the SDK and carefully study the format of the event to which you will attach the data. If the format does not match, most likely the expected results will not be received.

Example - attaching data to an event

Analytics
Target
Analytics

The following sample shows how to attach data to all outgoing TrackAction Analytics network requests. To create this type of rule, select your property in Experience Platform Launch and complete the following steps:

Create a rule

  1. On the Rules tab, click Create New Rule.

If you do not have existing rules for this property, the Create New Rule button will be in the middle of the screen. If your property has rules, the button will be in the top right of the screen.

Select an event

  1. Give your rule an easily recognizable name in your list of rules.

    In this example, the rule is named Attach Places Data to Analytics Track Action Events.

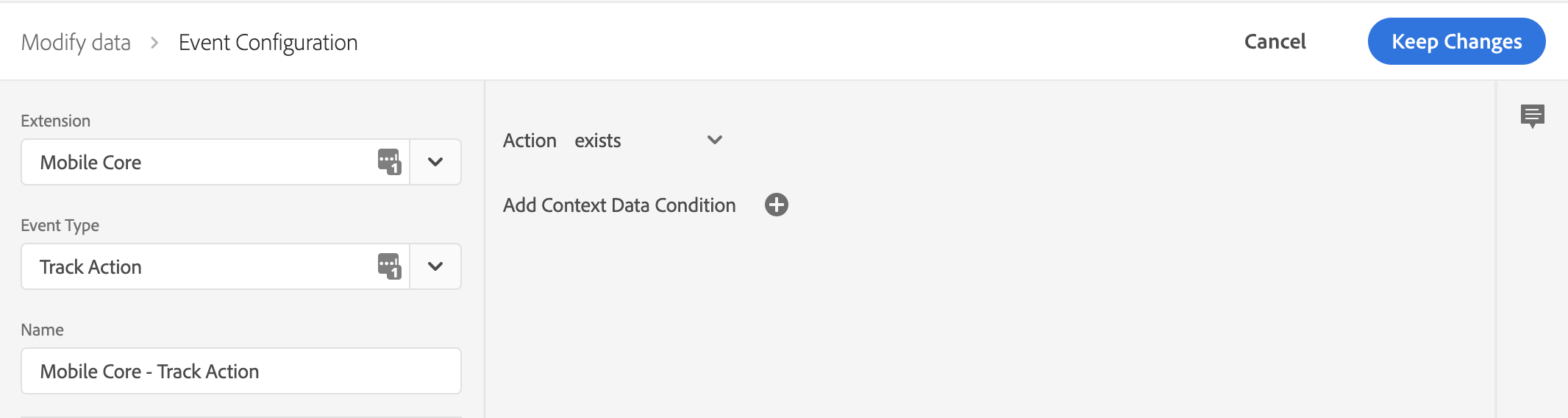

  2. Under the Events section, click Add.

  3. From the Extension drop-down list, select Mobile Core.

  4. From the Event Type drop-down list, select Track Action.

  5. Click Keep Changes.

Define the action

  1. Under the Actions section, click Add.

  2. From the Extension drop-down list, select Mobile Core.

  3. From the Action Type drop-down list, select Attach Data.

  4. On the right pane, in the JSON Payload field, type the data that will be added to this event.

  5. Click Keep Changes.

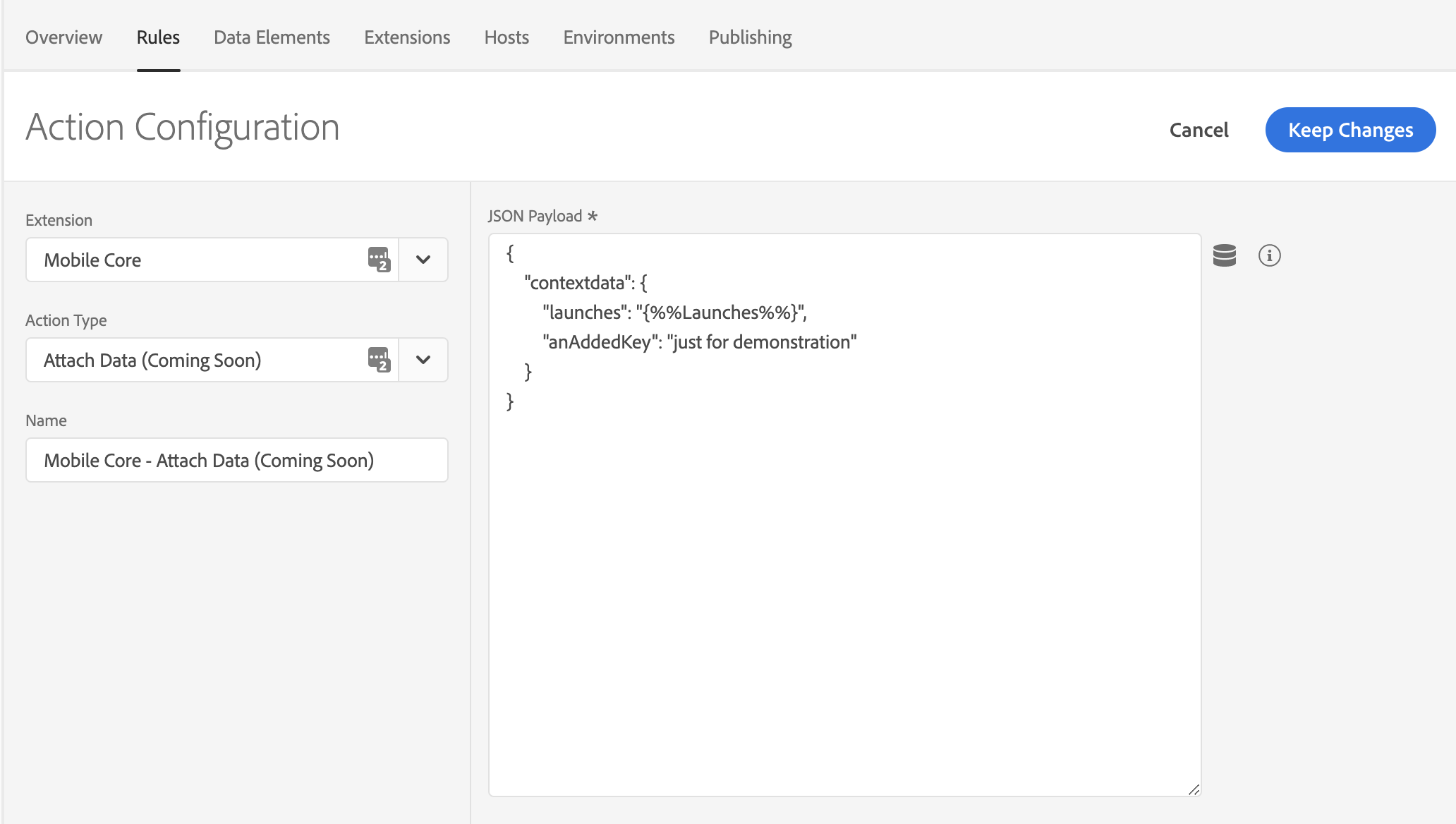

On the right pane, you can add a freeform JSON payload that adds data to an SDK event before an extension that is listening for this event can hear the event. In this example, some context data is added to this event before the Analytics extension processes it. The added context data will now be on the outgoing Analytics hit.

In the following example, launches and anAddedKey keys are added to the contextdata of the Analytics event. Values for the new keys can either be hardcoded in the rule, or dynamically determined by the SDK when this event processes by using Data Elements.

Save the rule and rebuild your property

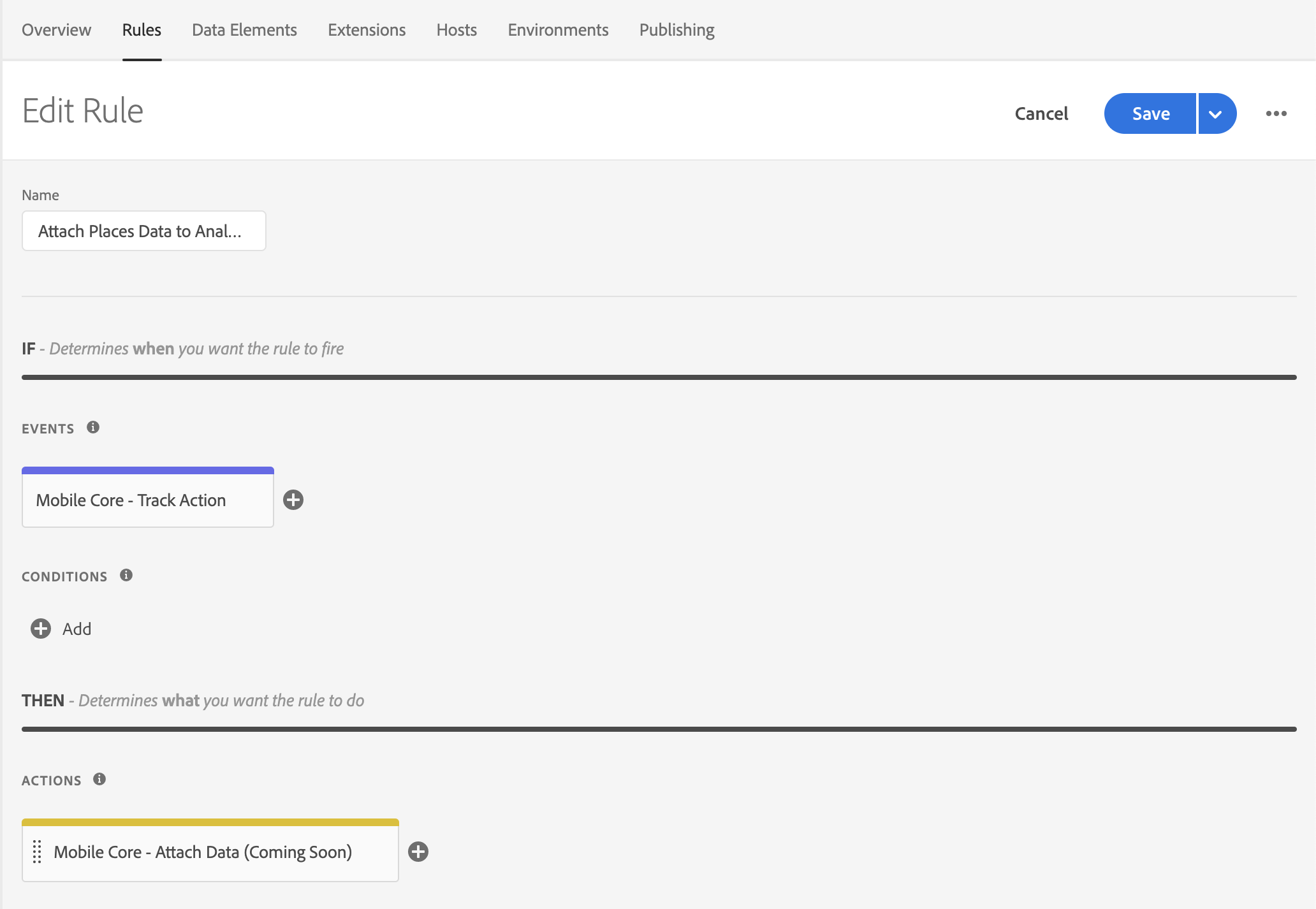

After you complete your configuration, verify that your rule looks like the following:

  1. Click Save

  2. Rebuild your Experience Platform Launch property and deploy it to the correct Environment.

Target

The Attach Data feature applies only to the Target extension.

Attach additional data to Target to retrieve location events

The following sample shows how to attach data to all outgoing retrieveLocationContent Target network requests. To create this type of rule, select your property in Experience Platform Launch and complete the following steps:

Create a rule

  1. On the Rules tab, click Create New Rule.

If you do not have existing rules for this property, the Create New Rule button will be in the middle of the screen. If your property has rules, the button will be in the top right of the screen.

Select an event

  1. Give your rule an easily recognizable name in your list of rules.

    In this example, the rule is named Attach additional data to Target retrieve location Events.

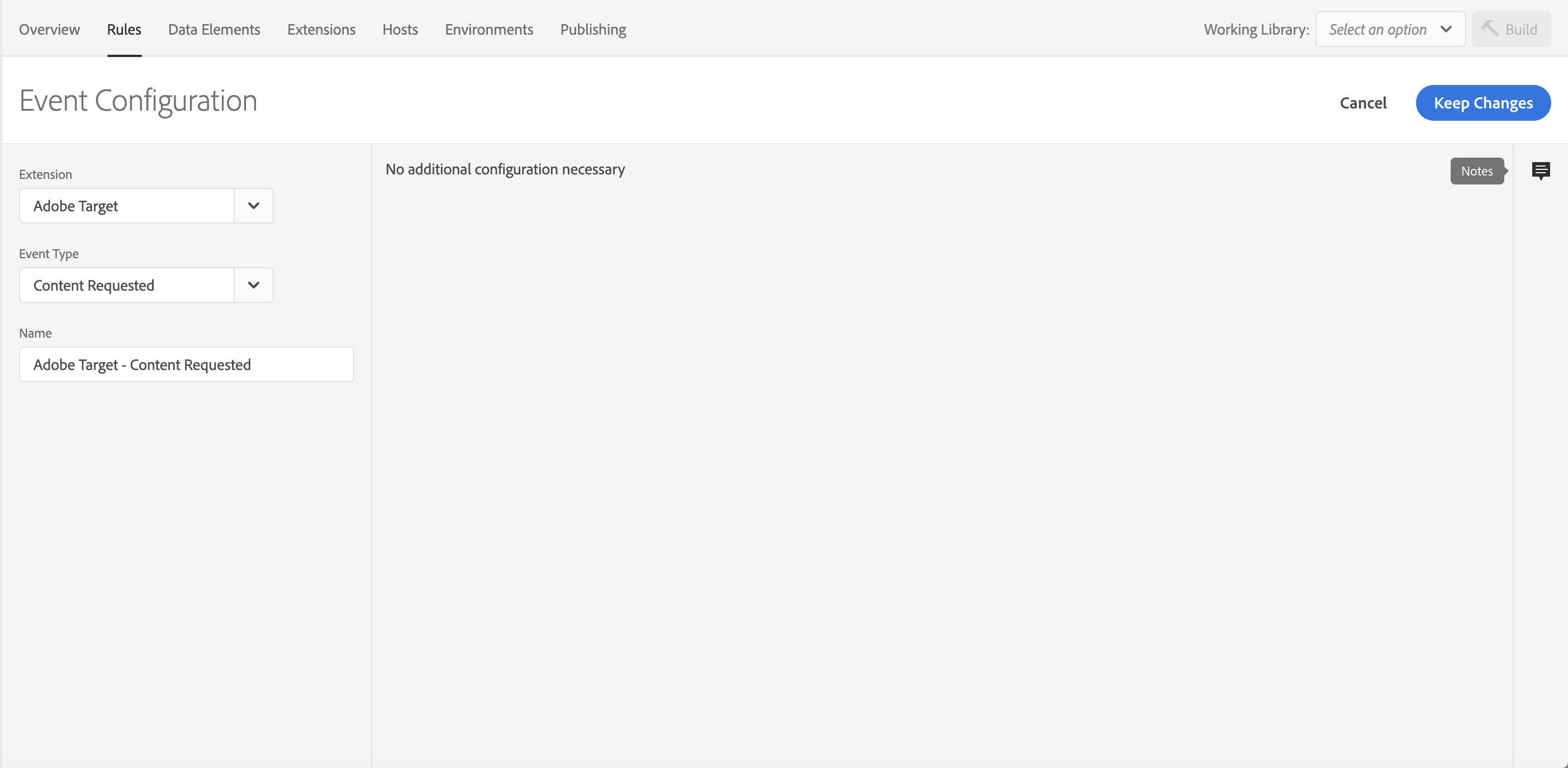

  2. Under the Events section, click Add.

  3. From the Extension drop-down list, select Adobe Target.

  4. From the Event Type drop-down list, select Content Requested.

  5. Click Keep Changes.

Define the action

  1. Under the Actions section, click Add.

  2. From the Extension drop-down list, select Mobile Core.

  3. From the Action Type drop-down list, select Attach Data.

  4. On the right pane, in the JSON Payload field, type the data that will be added to this event.

  5. Click Keep Changes.

On the right pane, you can add a freeform JSON payload that adds data to an SDK event before an extension that is listening for this event can hear the event. In this example, a custom mbox with custom mbox parameters is added to the event before the Target extension processes it. The added custom mbox will now be added on outgoing Target retrieve location requests.

In the following example, an additional TargetRequest object for the given custom_mbox, which contains the provided Target parameters, is added to the Target event.

In the above example, the JSON payload adds custom mbox parameters only for the custom mbox that was added. You can also add custom parameters to each of the Target retrieve location objects. The following example contains a valid JSON payload for this use case:

{
"request[*]": {
"targetparams": {
"profileparams": {
"extraRetrieveLocationKey": "extraRetrieveLocationValue"
},
"mboxparameters": {
"extraRetrieveLocationMboxKey": "extraRetrieveLocationMboxValue"
}
}
}
}

Save the rule and rebuild your property

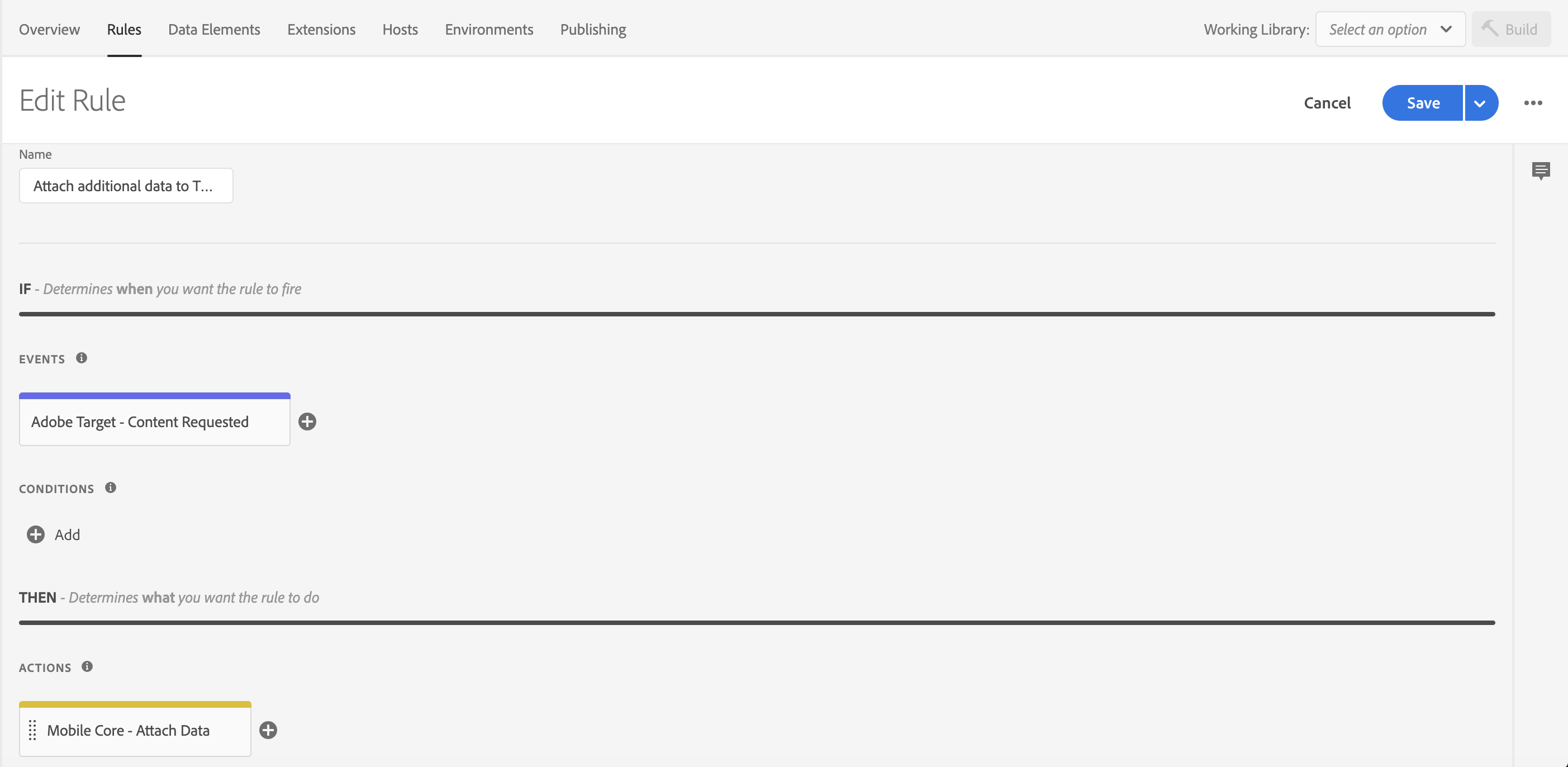

After you complete your configuration, verify that your rule looks like the following:

  1. Click Save

  2. Rebuild your Experience Platform Launch property and deploy it to the correct Environment.

Attach additional data to Target to prefetch content events

The following sample shows how to add a custom mbox to prefetch in all outgoing prefetchContent Target network requests. To create this type of rule, select your property in Experience Platform Launch and complete the following steps:

Create a rule

  1. On the Rules tab, click Create New Rule.

If you do not have existing rules for this property, the Create New Rule button will be in the middle of the screen. If your property has rules, the button will be in the top right of the screen.

Select an event

  1. Give your rule an easily recognizable name in your list of rules.

    In this example, the rule is named Attach additional data to Target prefetch content Events.

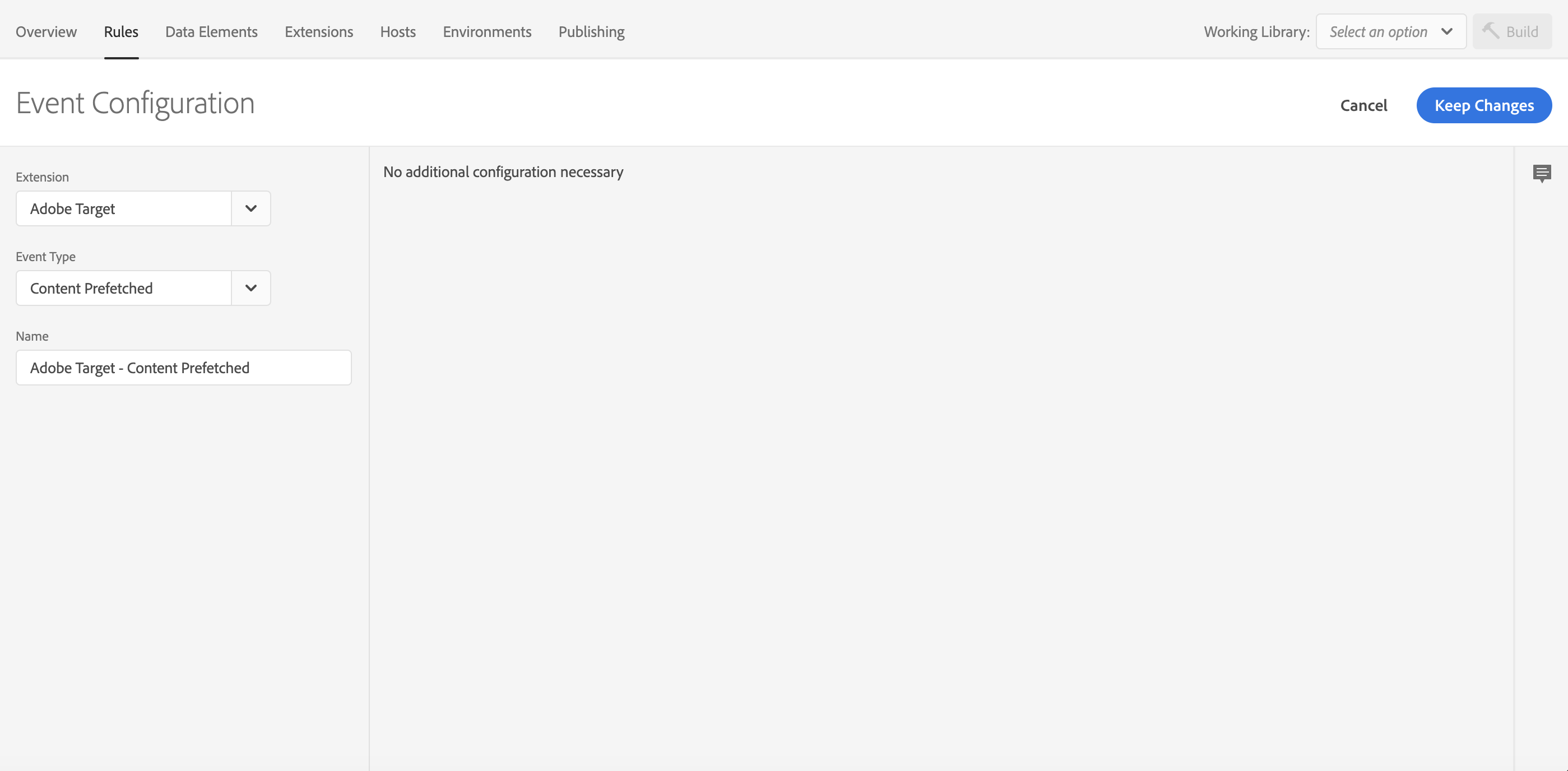

  2. Under the Events section, click Add.

  3. From the Extension drop-down list, select Adobe Target.

  4. From the Event Type drop-down list, select Content Prefetched.

  5. Click Keep Changes.

Define the action

  1. Under the Actions section, click Add.

  2. From the Extension drop-down list, select Mobile Core.

  3. From the Action Type drop-down list, select Attach Data.

  4. On the right pane, in the JSON Payload field, type the data that will be added to this event.

  5. Click Keep Changes.

On the right pane, you can add a freeform JSON payload that adds data to an SDK event before an extension that is listening for this event can hear the event. In this example, a custom mbox with custom mbox parameters is added to the event before the Target extension processes it. The added custom mbox will now be added on outgoing Target prefetch requests.

In the following example, an additional TargetPrefetch object for the given mbox custom_mbox containing the provided Target parameters is added to the Target event.

In the above example, the JSON payload adds custom mbox parameters only for the custom mbox that was added. You can also add custom parameters to each of the Target prefetch objects. The following example contains a valid JSON payload for this use case:

{
"prefetch[*]": {
"targetparams": {
"profileparams": {
"extraPrefetchProfileKey": "extraPrefetchProfileValue"
},
"mboxparameters": {
"extraPrefetchMboxKey": "extraPrefetchMboxValue"
}
}
}
}

Save the rule and rebuild your property

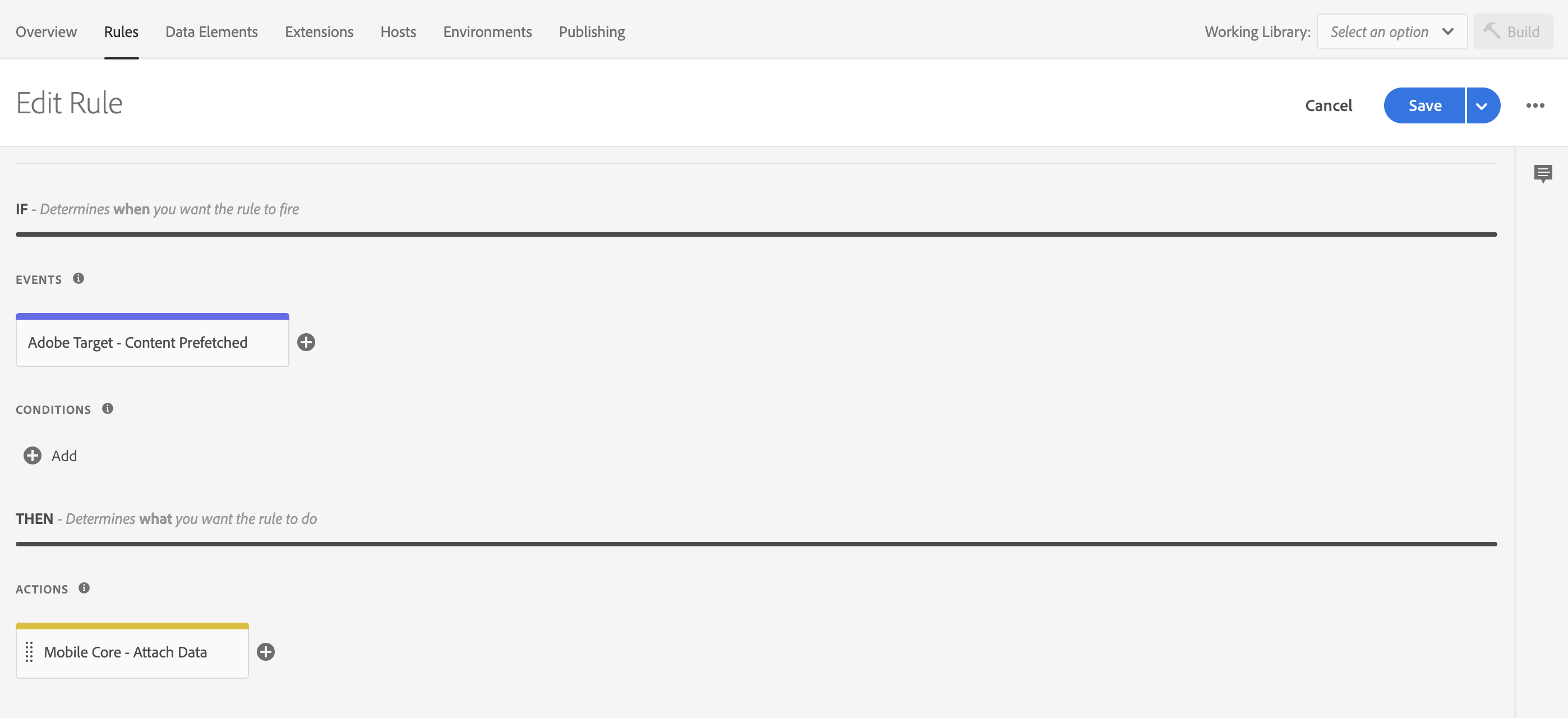

After you complete your configuration, verify that your rule looks like the following:

  1. Click Save

  2. Rebuild your Experience Platform Launch property and deploy it to the correct Environment.

Attach additional data to Target location-clicked events

The following sample shows how to add additional mbox and profile parameters in all outgoing locationClicked Target network requests. To create this type of rule, select your property in Experience Platform Launch and complete the following steps:

Create a rule

  1. On the Rules tab, click Create New Rule.

If you do not have existing rules for this property, the Create New Rule button will be in the middle of the screen. If your property has rules, the button will be in the top right of the screen.

Select an event

  1. Give your rule an easily recognizable name in your list of rules.

    In this example, the rule is named Attach additional data to Target location clicked Events.

  2. Under the Events section, click Add.

  3. From the Extension drop-down list, select Adobe Target.

  4. From the Event Type drop-down list, select Location Clicked.

  5. Click Keep Changes.

Define the action

  1. Under the Actions section, click Add.

  2. From the Extension drop-down list, select Mobile Core.

  3. From the Action Type drop-down list, select Attach Data.

  4. On the right pane, in the JSON Payload field, type the data that will be added to this event.

  5. Click Keep Changes.

On the right pane, you can add a freeform JSON payload that adds data to an SDK event before an extension that is listening for this event can hear the event. In this example, custom mbox and profile parameters are added to the event before the Target extension processes it. The added mbox and profile parameters will now be added on outgoing Target location clicked requests.

In the following example, extraKey and extraKey2 are added to the profile parameters. A key named customMboxParameter and a data element that was defined for the OS version are added to the mbox parameters of the Target event. Values for the new keys can either be hardcoded in the rule or be dynamically determined by the SDK when this event processes by using data elements.

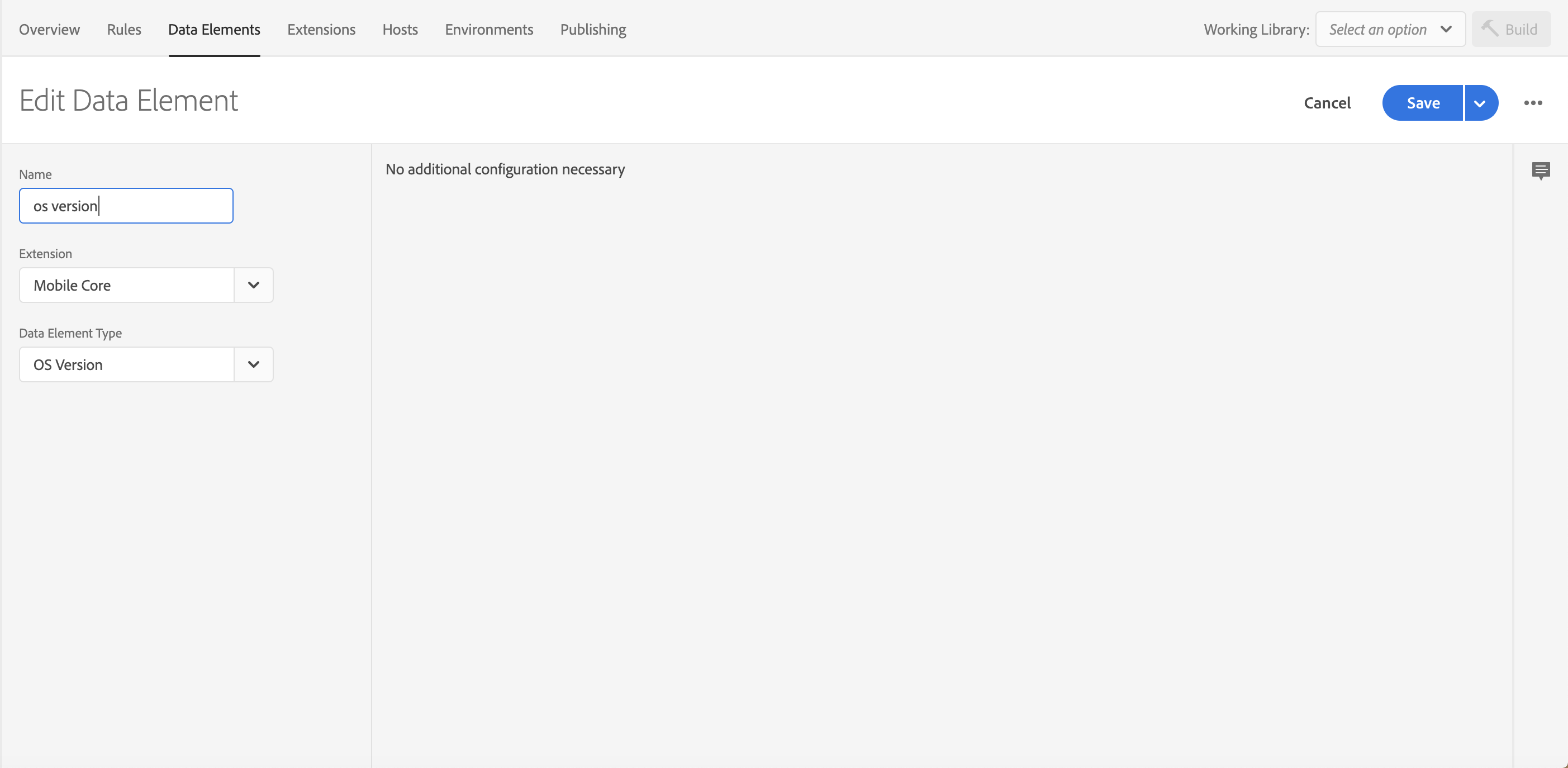

The following example shows how the data element for this OS version was created.

Save the rule and rebuild your property

After you complete your configuration, verify that your rule looks like the following:

  1. Click Save

  2. Rebuild your Experience Platform Launch property and deploy it to the correct Environment.

Attach additional data to Target location-displayed events

The following sample shows how to add additional mbox and profile parameters in all outgoing locationDisplayed Target network requests. To create this type of rule, select your property in Experience Platform Launch and complete the following steps:

Create a rule

  1. On the Rules tab, click Create New Rule.

If you do not have existing rules for this property, the Create New Rule button will be in the middle of the screen. If your property has rules, the button will be in the top right of the screen.

Select an event

  1. Give your rule an easily recognizable name in your list of rules.

    In this example, the rule is named Attach additional data to Target location displayed Events.

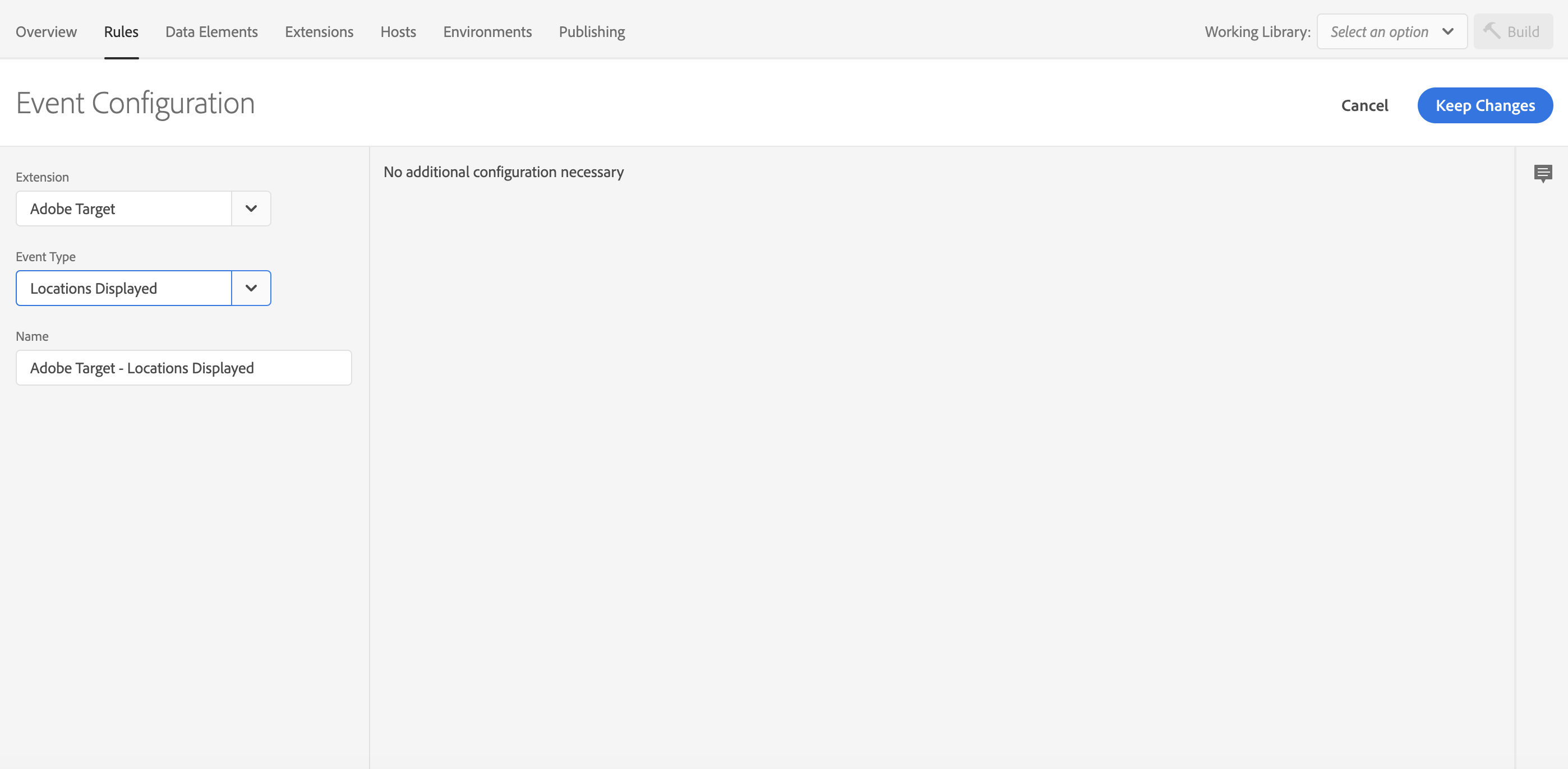

  2. Under the Events section, click Add.

  3. From the Extension drop-down list, select Adobe Target.

  4. From the Event Type drop-down list, select Location Displayed.

  5. Click Keep Changes.

Define the action

  1. Under the Actions section, click Add.

  2. From the Extension drop-down list, select Mobile Core.

  3. From the Action Type drop-down list, select Attach Data.

  4. On the right pane, in the JSON Payload field, type the data that will be added to this event.

  5. Click Keep Changes.

On the right pane, you can add a freeform JSON payload that adds data to an SDK event before an extension that is listening for this event can hear the event. In this example, custom mbox and profile parameters are added to the event before the Target extension processes it. The added mbox and profile parameters will now be added on outgoing Target location displayed requests.

In the following example, extraKey and extraKey2 are added to the profile parameters. A key named customMboxParameter and a data element that was defined for the OS version are added to the mbox parameters of the Target event. Values for the new keys can either be hardcoded in the rule or be dynamically determined by the SDK when this event processes by using data elements.

Save the rule and rebuild your property

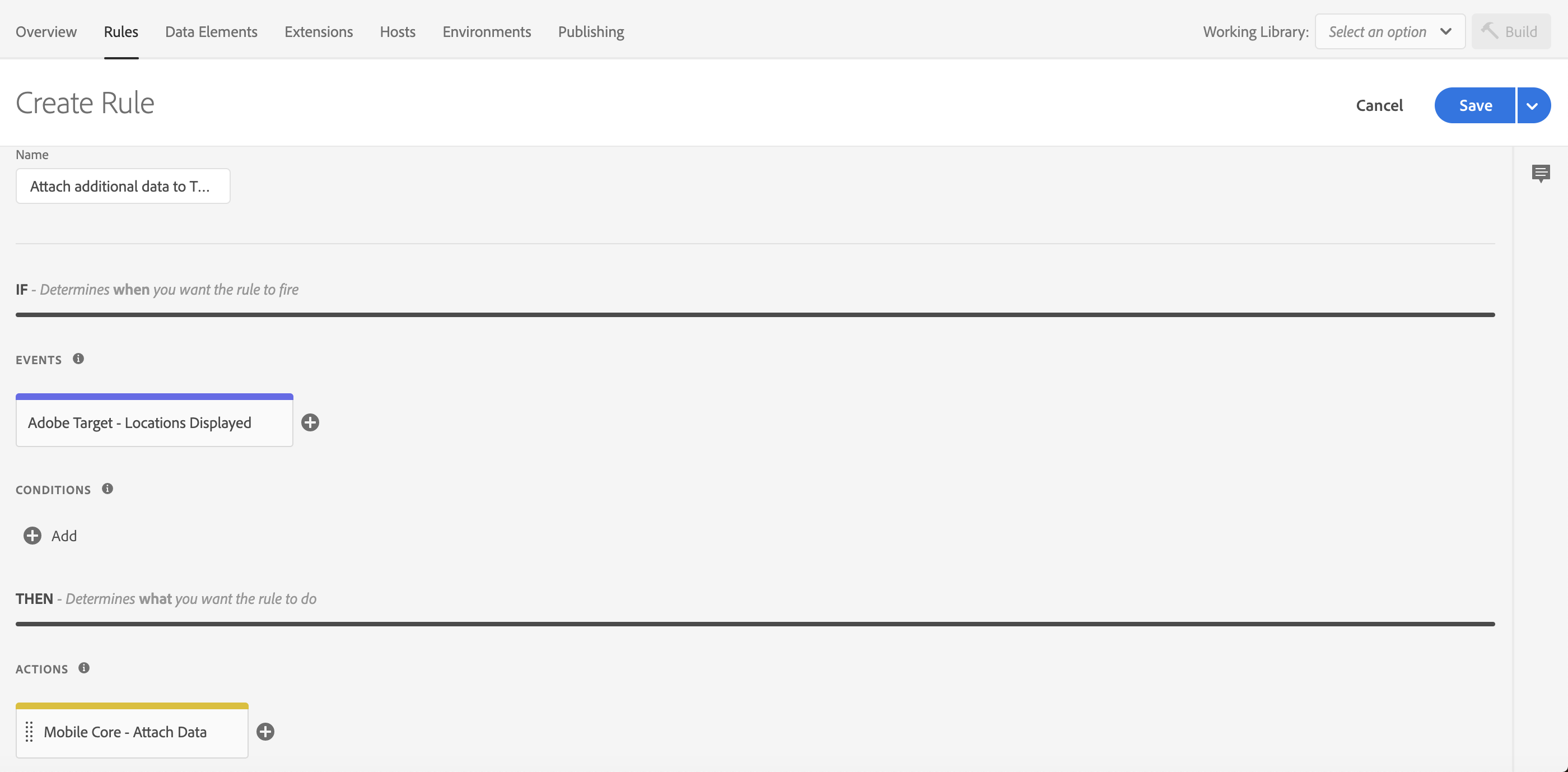

After you complete your configuration, verify that your rule looks like the following:

  1. Click Save

  2. Rebuild your Experience Platform Launch property and deploy it to the correct Environment.
