Validate in-app messaging using Adobe Assurance
This guide will walk you through steps necessary to ensure your app is properly configured for in-app messaging with Adobe Journey Optimizer (AJO).

Prerequisites

Validate the correct extensions are registered

Ensure that your app has registered all necessary AEP SDK extensions by doing the following:
  1. 1.
    Launch your application with an AEPAssurance session active
  2. 2.
    In the Assurance UI, click on Shared States in the left-rail navigation
  3. 3.
    Click the + button next to the row with a State Path of com.adobe.module.eventhub
  4. 4.
    Open the extensions object and validate that each of the required extensions exist, ensuring it meets the minimum version requirements. The table below shows the minimum versions required for in-app messaging dependencies:
    Extension (iOS)
    Min. Version (iOS)
    Extension (Android)
    Min. Version (Android)
    AEPCore
    3.4.2
    core
    1.11.0
    AEPEdge
    1.3.0
    edge
    1.1.1
    AEPEdgeConsent
    1.0.0
    edgeconsent
    1.0.1
    AEPEdgeIdentity
    1.0.1
    edgeidentity
    1.0.0
    AEPMessaging
    1.1.0
    messaging
    1.2.0
    AEPOptimize
    1.0.0
    optimize
    1.0.0

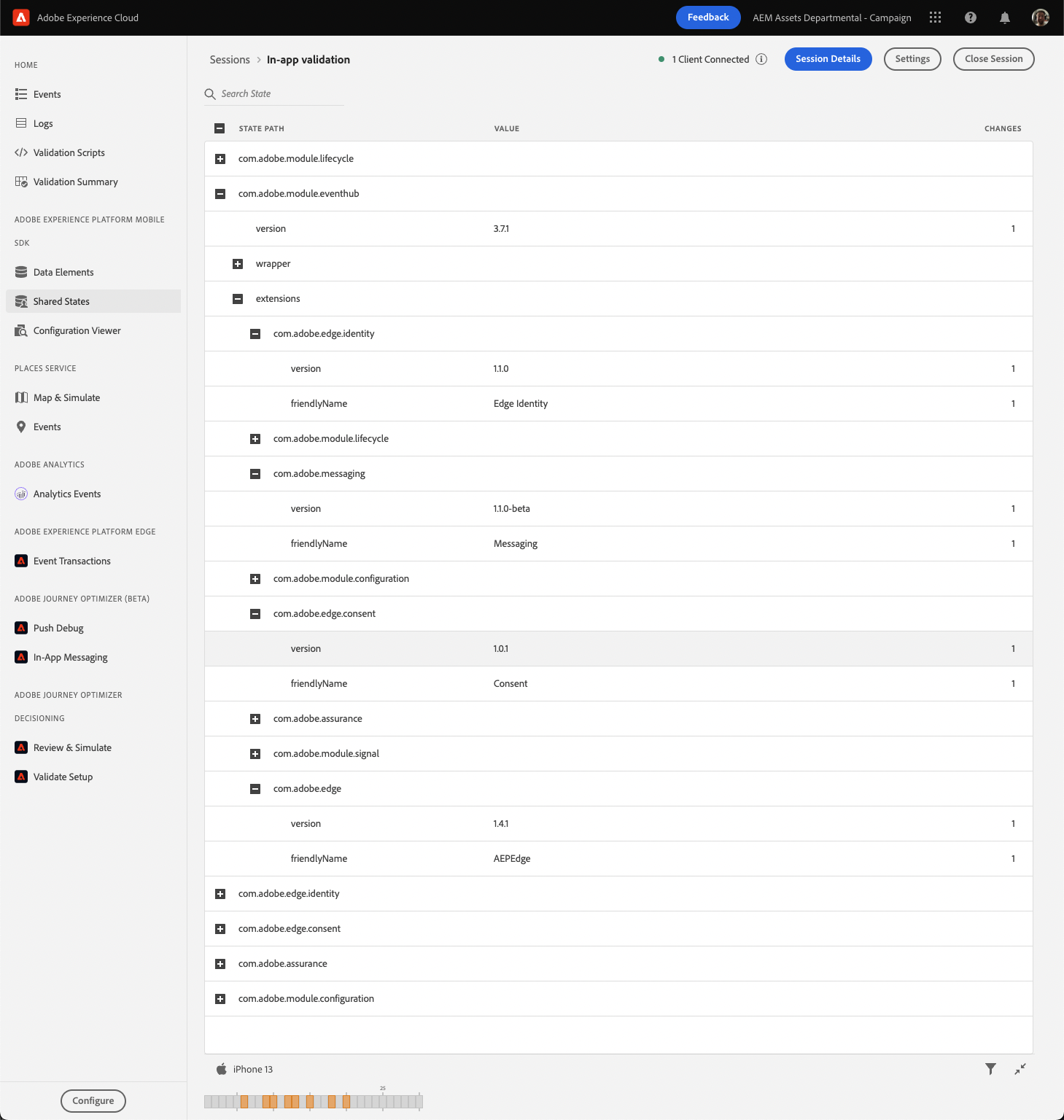

A sample view in the Assurance UI can be seen below:
correct extensions registered

Validate the event requesting message definitions

When the AEPMessaging extension has finished registration with the AEP SDK, it will automatically initiate a network request to fetch message definitions from the remote if a valid configuration exists.
Completing the following steps will validate that your app is making the necessary request to retrieve in-app message definitions:
  1. 1.
    Launch your application with an AEPAssurance session active
  2. 2.
    In the Assurance UI, click on Events in the left-rail navigation
  3. 3.
    In the event list, select the event with type Edge Optimize Personalization Request
  4. 4.
    Expand the Payload section in the right window and ensure the correct decisionScope is being used. The decisionScope is a base64 representation of a JSON payload that should contain your app's bundle identifier. You can use an online base64 decoder to decode the text. Verifying the request is using the correct decisionScope is important, since there may be multiple events with the same event type.
The following example demonstrates validating a decisionScope for an app with bundle identifier com.adobe.demosystem.dxdemo:
  • decisionScope == eyJ4ZG06bmFtZSI6ImNvbS5hZG9iZS5kZW1vc3lzdGVtLmR4ZGVtbyJ9
  • Base64 decoded representation of decisionScope == {"xdm:name":"com.adobe.demosystem.dxdemo"}
  • com.adobe.demosystem.dxdemo matches the application's bundle identifier

Validate the event containing a message definition response

After the request from the previous step returns, the AEPEdge extension will dispatch a response event containing data returned by the remote server.
Complete the following steps to validate a response containing in-app messages:
  1. 1.
    Launch your application with an AEPAssurance session active
  2. 2.
    In the Assurance UI, click on Events in the left-rail navigation
  3. 3.
    In the event list, select the event with type AEP Response Event Handle. There will likely be several events with this type - ensure the one selected has an AEPExtensionEventSource of personalization:decisions
  4. 4.
    Expand the Payload section in the right window and continue down the tree until you find the items array. The full path to items is:
    1
    ACPExtensionEventData.payload.0.items
    Copied!
    This array contains an entry for each of this app's published messages. As shown in the screenshot below, the message is fully defined in the content property of each item's data object:

Use the In-App Messaging Assurance UI plugin

Once all of the above validation sections are complete, you can use the In-App Messaging plugin view in the Assurance UI to further debug your app.

Install the In-App Messaging plugin

If you have already installed the In-App Messaging plugin in your Assurance UI setup, skip this section.
  1. 1.
    In the Assurance UI, click on Configure button at the bottom of the left-rail navigation
  2. 2.
    Search for the row named In-App Messaging under the ADOBE JOURNEY OPTIMIZER (BETA) heading, and click the + button on its right
  3. 3.
    Click the Save button

Inspecting a downloaded message

Using the IAM plugin you can do the following for each message downloaded by the client:
  • In the Rules tab - view the rules defining when the message will be shown to the user
  • In the History tab - review a history of client events, including a comparison between the event's contents and the message's triggering criteria
  • In the Message Preview window - see a preview of the message's html
  • In the Message Behavior window - review message behavior, including its supported gestures and animations
  • In the Message Behavior window - review message size and positioning properties
  • Clicking the Simulate on Device button - trigger the currently selected message, causing it to be displayed on the connected client

FAQs

Q: What do I do when one of the required extensions is missing?

A: Ensure that each required extension is linked to your project and registered by MobileCore. For more information, please read the Mobile Core API reference.

Q: Why can't I find an event named Edge Optimize Personalization Request?

A: Ensure that each of the required extensions is at the minimum required version.

Q: I see an AEP Error Response event, is that a problem?

A: If you open the EventData and the detail key has a value of "The Decisioning Package was not found.", this likely means the Messaging extension was unable to find the messages for your app. Check the below items to try and resolve the issue:
  • Make sure that messages have been published in the AJO Campaigns UI for your app surface
  • Make sure that the bundle identifier (iOS) or package name (Android) matches the value used for your app surface
  • Make sure that the environment and sandbox being used in AJO matches those being used to configure the app
  • Make sure that your Adobe organization is provisioned for Offers on Edge (this may require contacting your account manager)

Q: Why don't I see any messages in my AEP Response Event Handle event?

A: In the Adobe Journey Optimizer UI, make sure that there are in-app messages with a Live status for your application.

Q: Why aren't there any messages to select in the In-App Messaging Assurance UI plugin?

A: The In-App Messaging plugin view will only be populated when there are messages returned in the AEP Response Event Handle event.
