Custom Validation

Overview

You may use the Custom Validation feature to quickly and easily write a JavaScript function to validate events in an Adobe Experience Platform Assurance session.

Getting Started

To use this view, complete the following steps:
  1. 2.
    Create and connect to an Assurance session
  2. 3.

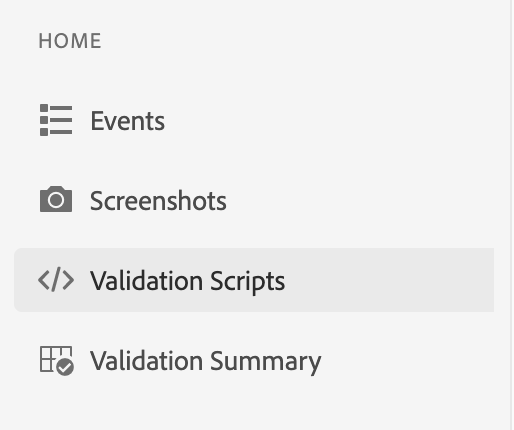

    In the Home view, select Validation Scripts
Custom Validation

Writing a Validation Function

This feature allows you to write a function to validate events in your Assurance session. The function should expect an array of Assurance events and should return:
  • A boolean (true or false) OR
  • An object that contains a status property with an optional array of event UUIDs

Event Definition

Key
Type
Description
uuid
String
Universally unique identifier for the event.
timestamp
Number
Timestamp from the device when the event was sent from the SDK.
eventNumber
Number
Used to order when the event was sent. This key is useful when events have the same timestamp.
vendor
String
Vendor identification string in the reverse domain name format (for example, com.adobe.griffon).
type
String
Used to denote the type of event.
payload
Object
Defines the data for the event and contains unique and common properties. Some common properties include ACPExtensionEventSource and ACPExtensionEventType.
annotations
Array
An array of annotation objects.

Annotation Definition

Key
Type
Description
uuid
String
Universally unique identifier for the annotation.
type
String
Used to denote the type of annotation and is usually the name of the plugin (for example, analytics).
payload
Object
Defines the data that should supplement the event. For Adobe Analytics, this is where the post-processed hit data is contained.

Returning Validation Results

To execute the code in the code editor, click Validate. The function should return a boolean (true or false) or an object that contains a status property and optionally an array of event UUIDs.
Key
Type
Description
status
boolean
Indicates whether the events being evaluated are valid (true) or invalid (false).
events
Array
(Optional) An array of event UUIDs. If provided with an invalid status, an event list displays the relevant events.

Script Management

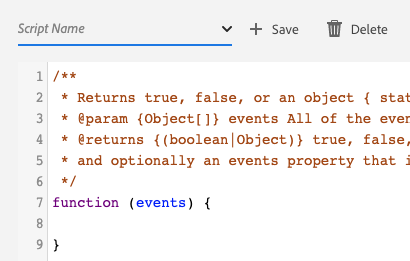

When the view is first loaded, it provides an empty function with JSDoc comments that define how the function accepts the events parameter with the expected return output. Currently, the view allows you to manage several validation scripts by leveraging the browser's cache.
You can create a new validation script by editing the existing script’s name in the drop-down list. To save or delete the script, click Save or Delete.

Troubleshooting

If an error occurs in the JavaScript code editor, an ERROR status is displayed, and the reason for the error is output to the browser's developer console.
Additionally, you can also reach out to our team on our Slack Channel at https://projectgriffon.slack.com/
